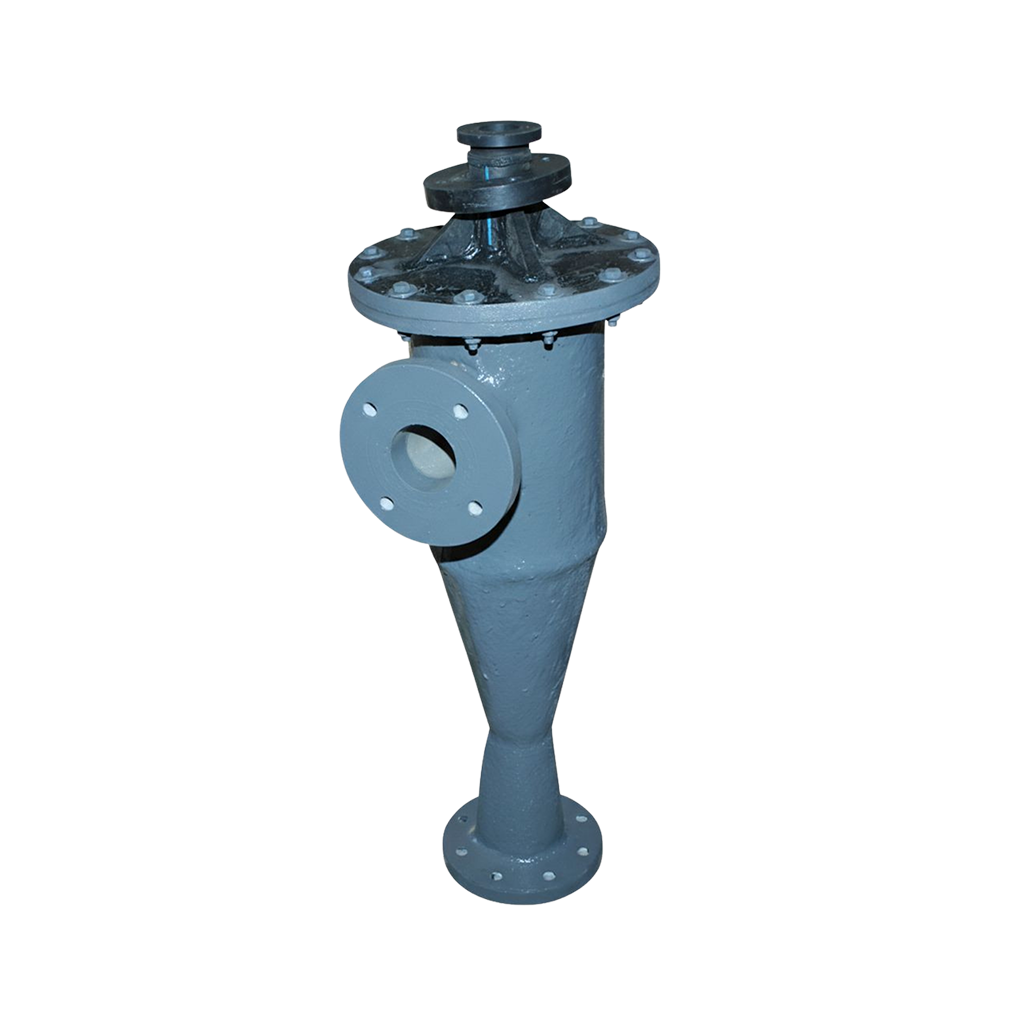

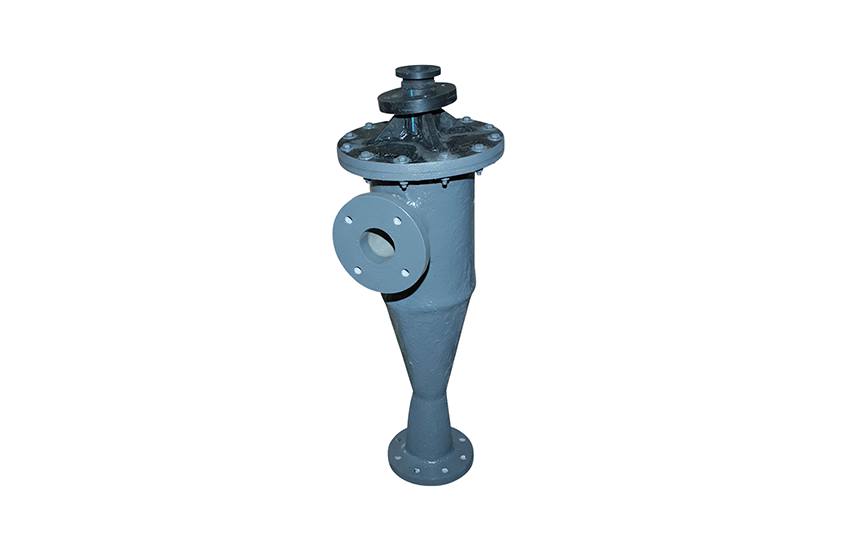

Venchury

Material Options & Operating Temperature Ranges :

Venchury units are fabricated using materials selected based on process media, operating temperature, and structural requirements.

• PP (Polypropylene Copolymer) : Used for general-purpose venturi applications handling mildly corrosive fluids and gases. Suitable for ambient to moderate temperatures up to 80–90°C.

• PPH (Polypropylene Homopolymer) : Offers higher rigidity and improved chemical resistance. Commonly used in chemical venchury systems operating up to 90–100°C.

• PVDF (Polyvinylidene Fluoride) : Selected for highly corrosive and aggressive chemical environments. Provides stable performance up to 120–150°C, depending on design.

• HDPE (High-Density Polyethylene) : Used for low-pressure and moisture-rich applications. Suitable for ambient temperature operation up to 60–70°C.

• PVC (Polyvinyl Chloride) : Applied in low-temperature chemical and ventilation systems. Performs reliably up to 60°C.

• FRP (Fiber Reinforced Plastic) : Provides additional structural strength and corrosion resistance. Suitable for ambient to moderate temperatures, depending on resin system.

• PP–FRP Lined Construction : Combines chemical resistance of polypropylene with the structural rigidity of FRP. Used for medium to large venturi units at moderate operating temperatures.

• HDPE–FRP Lined Construction : Provides abrasion resistance with added stiffness. Suitable for ambient temperature venchury applications.

• MS–FRP Lined Construction : Used where high mechanical strength is required. Mild steel provides structural support, while FRP lining protects against corrosion in ambient service conditions.

What Makes Our Venchury Units Different :

• Fabricated from corrosion-resistant thermoplastic and composite materials.

• Designed for efficient pressure drop and mixing performance.

• Smooth internal surfaces to minimize fouling and scaling.

• Lightweight alternatives available compared to metal construction.

• Custom-designed to suit process flow and system requirements.

Key Advantages :

• Excellent resistance to corrosive gases and liquids.

• Stable performance under continuous operation.

• Reduced maintenance compared to metal venturi systems.

• Flexible material selection based on process conditions.

• Long operational life in harsh environments.

Applications & Industries :

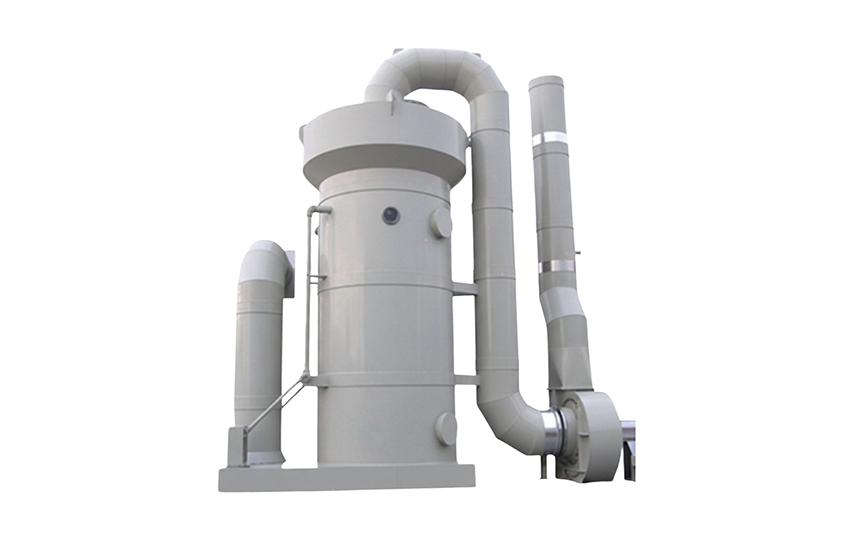

• Air Pollution Control Systems : Venchury scrubbers and gas cleaning units.

• Chemical Processing Plants : Process gas and liquid handling.

• Scrubbers & Exhaust Systems : Particle and contaminant removal.

• Wastewater Treatment Plants : Gas handling and odor control.

• Industrial Utilities : Process flow and mixing systems.
