Non Metallic Header

Material Options & Operating Temperature Ranges :

Non-metallic headers and manifolds are fabricated using thermoplastic and composite materials selected based on chemical compatibility, pressure, and operating temperature.

• PP (Polypropylene Copolymer) : Used for general chemical distribution and utility services. Suitable for ambient to moderate temperatures up to 80–90°C, with good impact resistance.

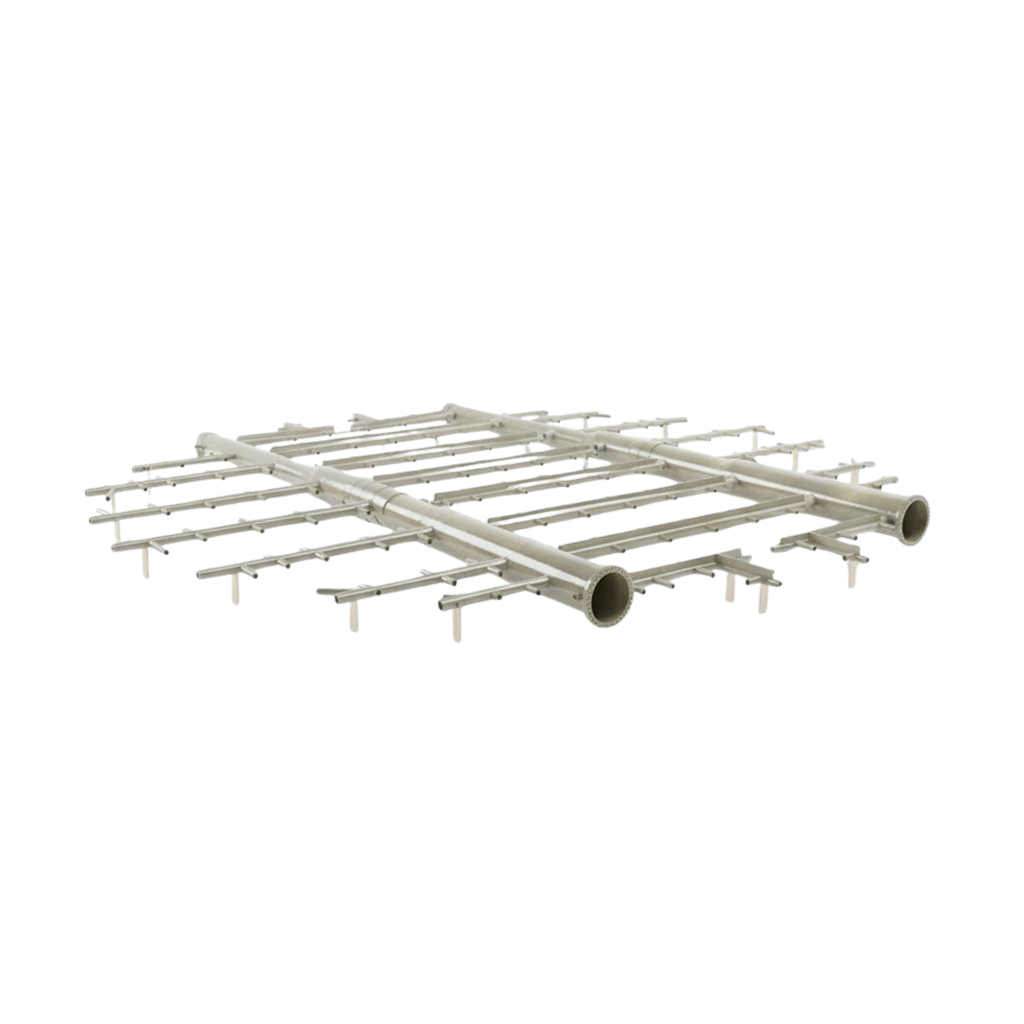

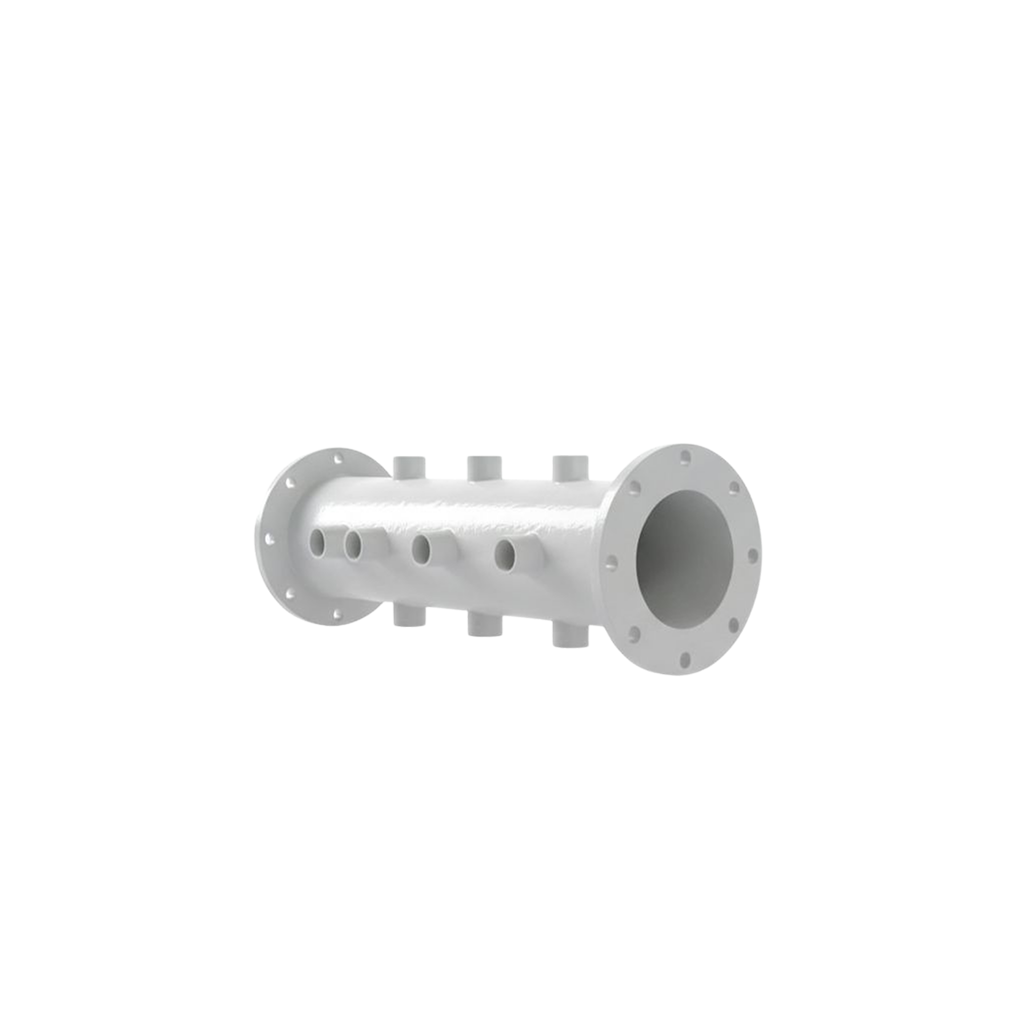

• PPH (Polypropylene Homopolymer) : Offers higher rigidity and improved chemical resistance. Commonly used in chemical process headers operating up to 90–100°C.

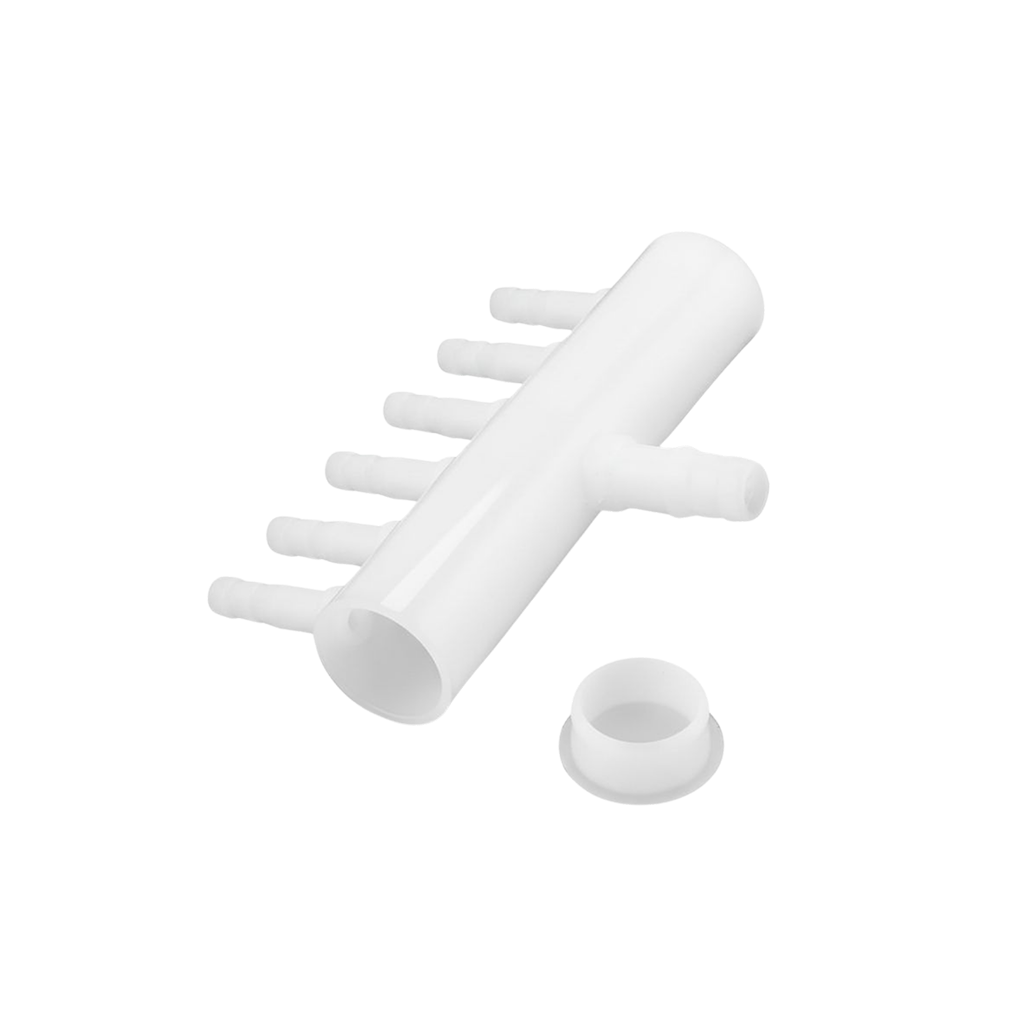

• PVDF (Polyvinylidene Fluoride) : Preferred for highly corrosive fluids and aggressive chemicals. Provides excellent chemical resistance with stable performance up to 120–150°C, depending on design.

• HDPE (High-Density Polyethylene) : Used for low-pressure distribution systems and moisture-prone environments. Suitable for ambient temperature applications up to 60–70°C.

• PVC (Polyvinyl Chloride) : Applied in low-temperature chemical and utility systems. Performs reliably up to 60°C.

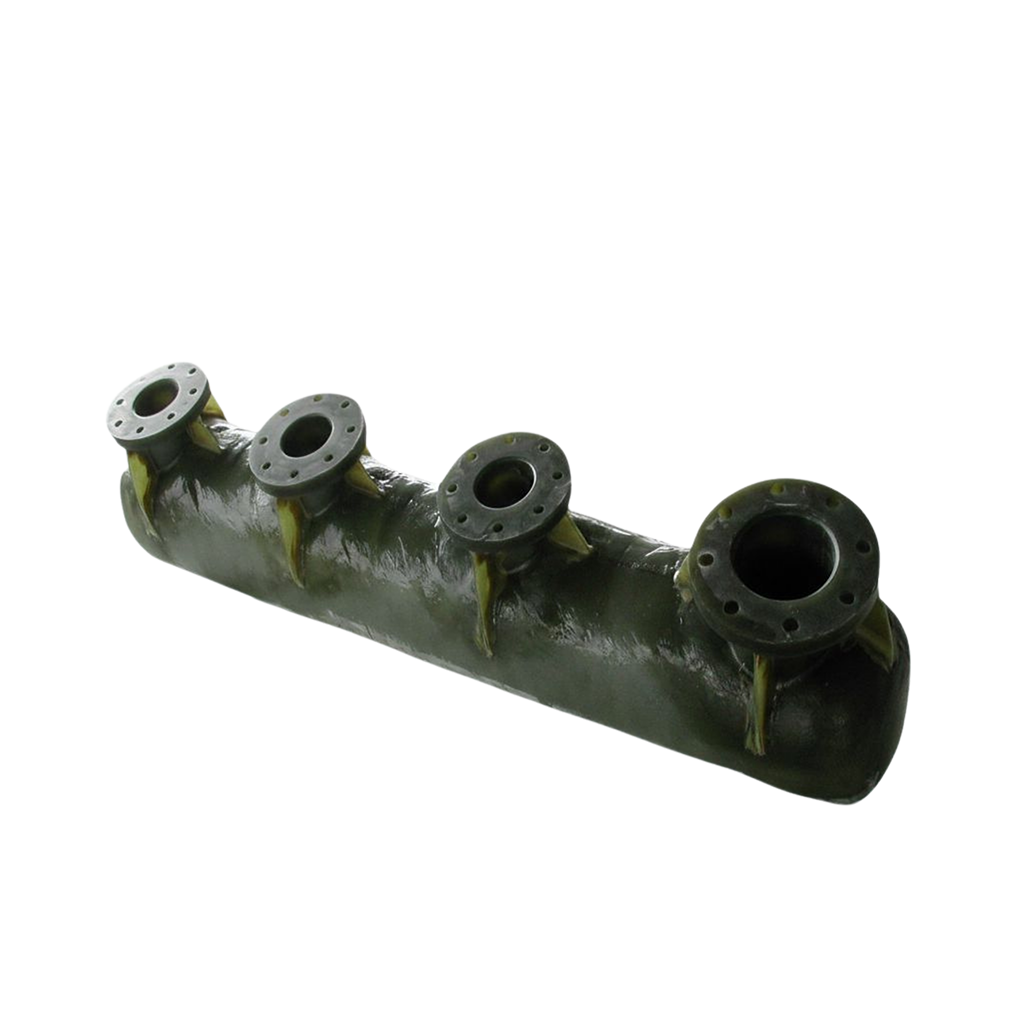

• FRP (Fiber Reinforced Plastic) : Selected where higher structural strength is required. Suitable for ambient to moderate temperatures, depending on resin system.

• PP–FRP Lined Construction : Combines polypropylene’s chemical resistance with FRP’s structural strength. Used for large manifolds handling corrosive fluids at moderate temperatures.

• HDPE–FRP Lined Construction : Provides abrasion resistance with added rigidity. Suitable for ambient temperature chemical distribution systems.

• MS–FRP Lined Construction : Used where mechanical strength is critical. Mild steel provides rigidity, while FRP lining protects against corrosion in ambient temperature service.

What Makes Our Non-Metallic Headers Different :

• Custom-fabricated to match flow, pressure, and connection requirements.

• Custom-fabricated to match flow, pressure, and connection requirements.

• Smooth internal surfaces for uniform flow distribution.

• Leak-free welded construction.

• Lightweight compared to metal manifolds.

Key Advantages :

• Excellent resistance to chemicals and corrosion.

• No rusting or scaling.

• Reduced maintenance and downtime.

• Flexible design for multiple inlets and outlets.

• Long operational life in harsh environments.

Applications & Industries :

• Chemical Processing Plants : Chemical distribution and collection systems.

• Wastewater Treatment Plants : Flow balancing and chemical dosing.

• Air Pollution Control Systems : Liquid distribution in scrubbers.

• Industrial Utilities : Process and service fluid distribution.
