Impellers
Impellers
Corrosion-Resistant Rotating Components for Fluid Handling Systems :
Impellers are critical rotating components used in pumps, blowers,
agitators, and circulation systems to move fluids or gases efficiently. In
corrosive or chemically aggressive environments, thermoplastic and
composite impellers provide a reliable alternative to metal impellers, which are prone to corrosion, scaling, and premature failure.
Manufactured from corrosion-resistant thermoplastic and composite
materials, these impellers are designed to deliver stable performance,
balanced rotation, and long service life in continuous-duty applications.
Material Options & Operating Temperature Ranges :
Impellers are fabricated using materials selected based on fluid chemistry, operating temperature, rotational speed, and mechanical load.
-

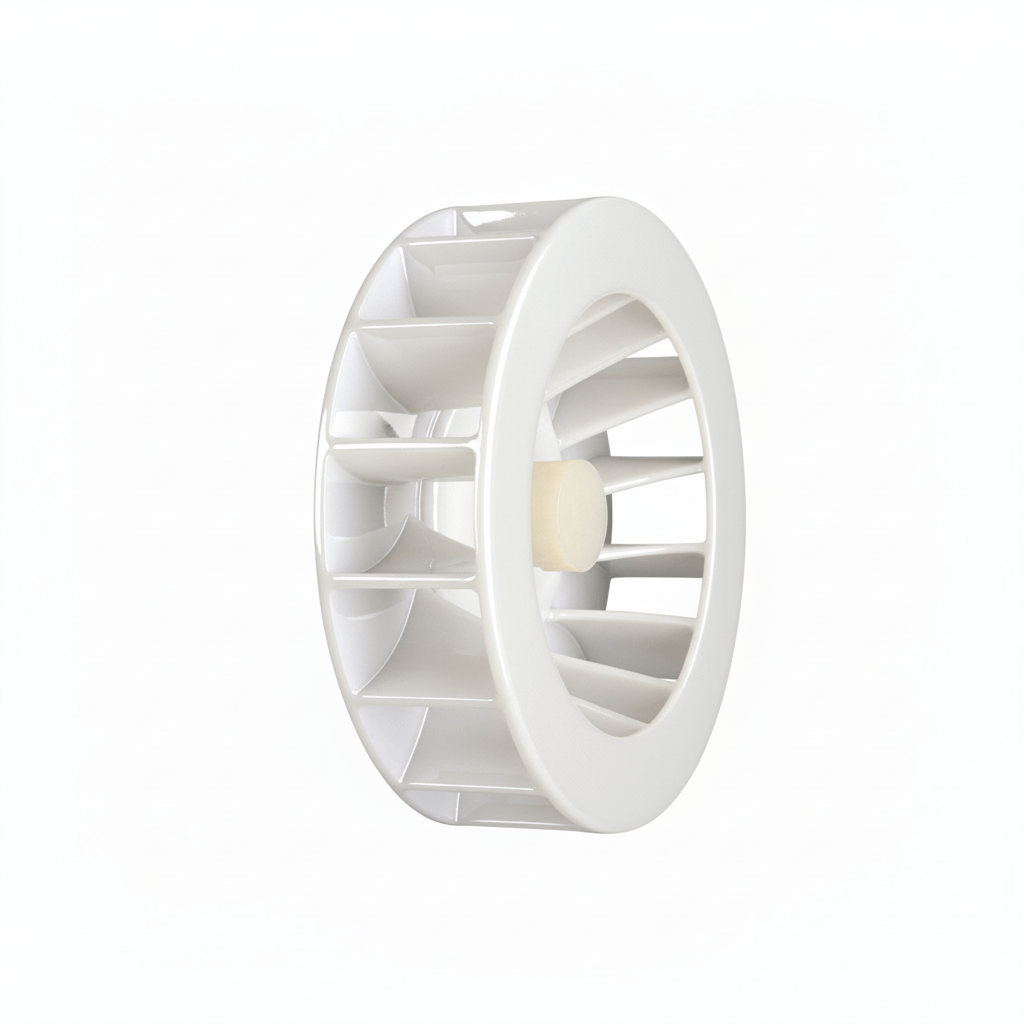

PP (Polypropylene Copolymer) : Used for general-purpose fluid handling with mildly corrosive media. Suitable for ambient to moderate temperatures up to 80–90°C.
-
PPH (Polypropylene Homopolymer) : Offers higher rigidity and improved chemical resistance. Commonly used in chemical process pumps operating up to 90–100°C.
-
PVDF (Polyvinylidene Fluoride) : Preferred for highly corrosive chemicals and aggressive fluids. Provides excellent chemical resistance with stable performance up to 120–150°C, depending on design.
-
HDPE (High-Density Polyethylene) : Used for low-pressure and abrasion-prone applications. Suitable for ambient temperature operation up to 60–70°C.
-
PVC (Polyvinyl Chloride) : Applied in low-temperature chemical handling systems. Performs reliably up to 60°C.
-

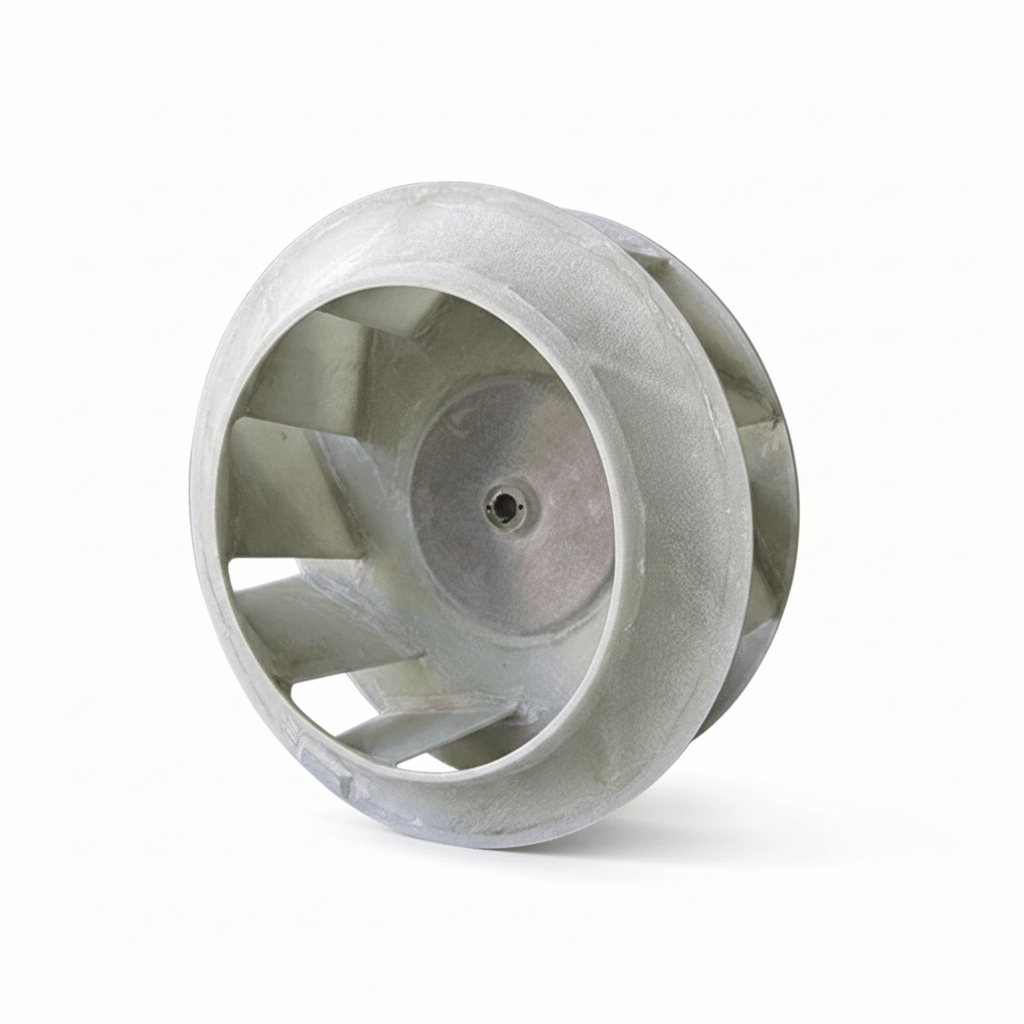

FRP (Fiber Reinforced Plastic) : Provides higher mechanical strength and stiffness. Suitable for ambient to moderate temperatures, depending on resin system.
-
PP–FRP Lined Construction : Combines chemical resistance of polypropylene with added structural strength from FRP. Used for medium-duty impellers handling corrosive fluids.
-
HDPE–FRP Lined Construction : Offers abrasion resistance with improved rigidity. Suitable for ambient temperature service.
-

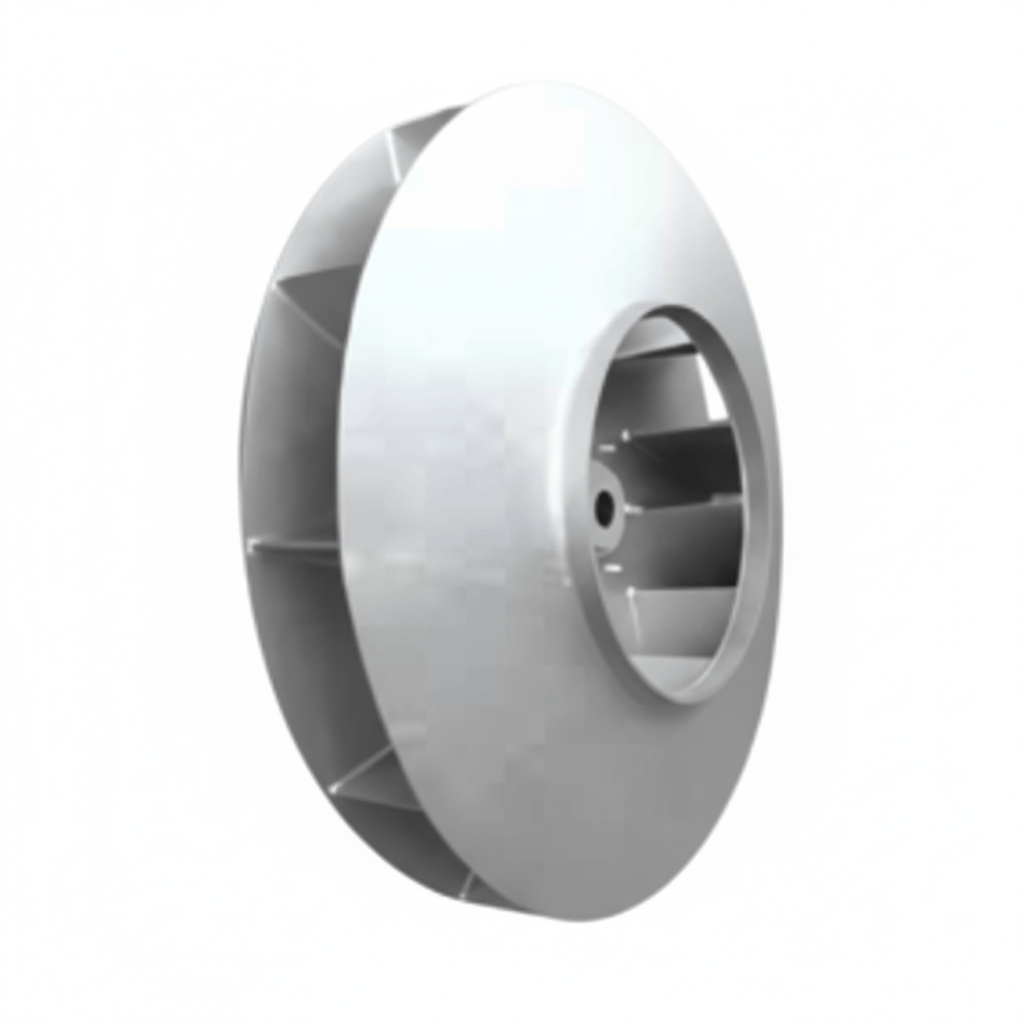

MS–FRP Lined Construction : Used where higher mechanical strength is required. Mild steel provides core strength, while FRP lining protects against corrosion in ambient service conditions.
What Makes Our Impellers Different :
| Features | Our Advantage | |
|---|---|---|
| Material Construction : | Manufactured from corrosion-resistant thermoplastic and composite materials. | |
| Flow Control Efficiency : | Dynamically balanced for smooth and vibration-free operation. | |
| Internal Surface Finish : | Designed for continuous-duty service. | |
| Filtration Cycle Durability : | Lightweight compared to metal impellers. | |
| Custom Configuration Compatibility : | Custom-designed for pump and system requirements. | |
Key Advantages :
-
Excellent resistance to chemical corrosion.
-
No rusting or scaling.
-
Reduced wear and maintenance.
-
Stable performance at operating speeds.
-
Long service life in aggressive environments.
Applications & Industries :
-
Chemical Processing Plants : Chemical transfer and circulation pumps.
-
Water & Wastewater Treatment : Process and utility pumping systems.
-
Scrubbers & Pollution Control : Liquid circulation and recirculation.
-
Electroplating & Surface Treatment : Handling corrosive process fluids.
-
Industrial Utilities : Cooling and process fluid movement.
Impellers
CPVC Impellers
CS+FRP Lined Impellers
FRP Impellers
HDPE Impellers
MS+FRP Lined Impellers
PPH Impellers
PP Impellersk
PVC Impellers
PVDF Impellers
SS+FRP Lined Impellers
UPVC Impellers
Why Industries Choose Us
Engineering Trust. Delivering Quality
-
Expertise in thermoplastic and composite impeller fabrication.
-
Multiple material options for chemical compatibility.
-
Precision manufacturing and balancing.
-
Technical support for impeller selection and design.
Request a Quote
Let’s Build Your Next Project
If your application requires thermoplastic or composite impellers for corrosive fluid handling, we provide reliable solutions tailored to your operating conditions.
